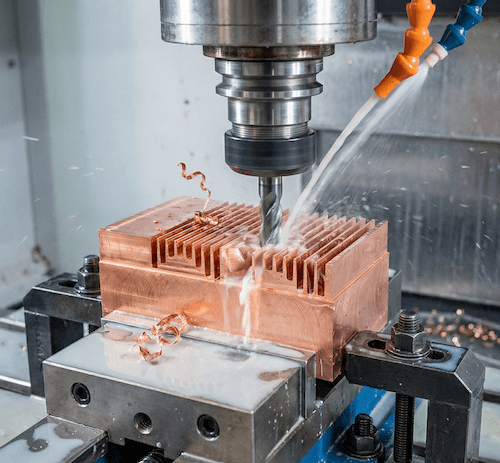

Custom CNC Machined Heat Sinks
From rapid prototyping to high-volume production, we deliver exactly what your design demands.
-
Extreme Precision: Tight tolerances for optimal thermal contact.
-
Geometrias complexas: Unrestricted pin and fin designs.
-
No MOQ: Order 1 part or 10,000.
Why Choose CNC Machining for Heat Sinks?
You might wonder why you should choose Usinagem CNC over traditional die casting or extrusion. The answer is simple: Design Freedom and Thermal Efficiency. Extrusion processes are limited by mold constraints, meaning you can only create straight fins with specific thickness ratios. Usinagem CNC removes these barriers.
- Optimize Airflow: You can design complex pin-fin arrays, cross-cuts, and angled fins to maximize surface area and direct airflow exactly where you need it.
-
Superior Flatness: Machined base plates achieve incredibly flat surfaces (down to Ra 0.4), eliminating air gaps between the heat sink and your processor (CPU/GPU) for maximum heat transfer.
-
Zero Tooling Costs: Unlike die casting, Usinagem CNC requires no expensive molds, saving you upfront costs and allowing for immediate design changes.
Our CNC Heat Sink Manufacturing Capabilities
RALLY utilizes advanced 3-axis, 4-axis, and 5-axis Fresamento CNC centers to bring your most challenging thermal designs to life.
-
Fin Thickness: Minimum fin thickness down to 0.5mm.
-
Fin Pitch (Gap): High-density fin gaps down to 1.0mm.
-
Base Flatness: Up to 0.01mm per 100mm, ensuring perfect chip contact.
-
Machining Tolerances: Standard ISO 2768-m or up to ±0.005mm for critical mounting features.
-
Max Dimensions: Capability to machine large heat sinks up to 1000mm x 500mm. Whether you need skived heat sinks, cross-cut fins, or integrated heat pipe grooves, our engineers ensure your specifications are met exactly.
Centros de Usinagem CNC
-
Fresamento de 3, 4 e 5 eixos
-
Adequado para formas complexas e tolerâncias apertadas
Máquinas de Torneamento CNC
-
Torneamento de alta velocidade até Ø300mm
-
Ideal para peças redondas como eixos e buchas
Material Selection: Aluminum vs. Copper
Selecting the right material is crucial for your thermal management system. We stock premium, certified metals.
Aluminum Alloys (6061-T6, 7075-T6, 6063)
-
Prós: Lightweight, highly machinable, cost-effective, and excellent natural corrosion resistance.
-
Thermal Conductivity: ~167 to 200 W/m·K.
-
Best For: Aerospace, automotive LED lighting, and general electronics where weight and cost are primary factors.
Copper Alloys (C11000, C10100 Oxygen-Free)
-
Prós: Outstanding thermal absorption and spreading capabilities.
-
Thermal Conductivity: ~390 to 400 W/m·K (nearly double that of aluminum).
-
Best For: High-power CPUs, lasers, telecom base stations, and compact spaces requiring aggressive heat dissipation.
Get Your Custom CNC Machining Heatsink Quote Today!
Surface Treatments Tailored for Thermal Efficiency
A raw machined surface isn't always enough. We offer advanced surface finishes that not only protect your parts but can actually enhance thermal radiation.
-

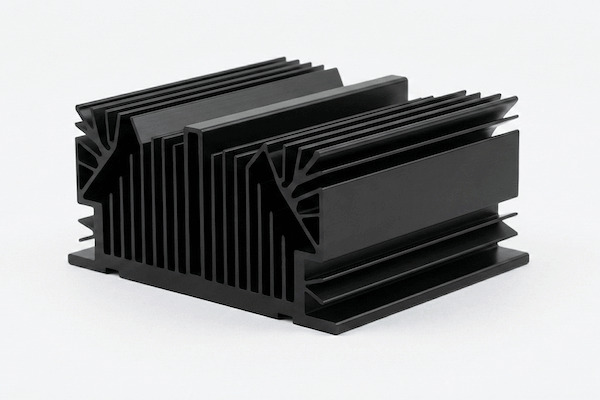

Black Anodizing (Type II): The most popular choice for aluminum heat sinks. Black anodizing increases surface emissivity, meaning the heat sink radiates heat into the air more effectively than raw metal.
-
Clear Anodizing: Protects against corrosion and electrical conductivity without altering the natural silver appearance.

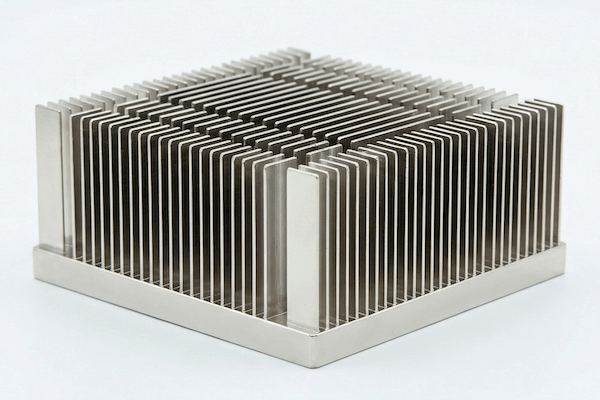

- Electroless Nickel Plating: Frequently used for copper heat sinks to prevent oxidation and tarnishing over time, while maintaining excellent solderability.
-
Chromate Conversion (Chem Film): Provides excellent electrical conductivity and corrosion resistance.
CNC Heat Sinks Industries & Applications
Where Our Custom Heat Sinks Are Used
If it generates heat, RALLY can help you cool it down. We provide thermal solutions for strict-tolerance industries:

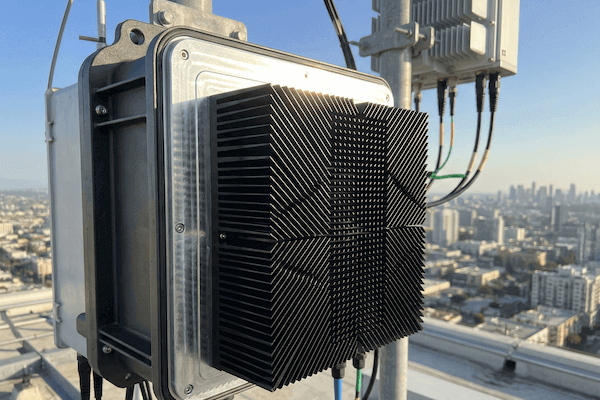

Telecommunications & 5G
We provide high-efficiency thermal solutions for 5G base stations, routers, and telecom enclosures. Our custom heat sinks ensure optimal signal integrity and prevent critical RF amplifiers from overheating.

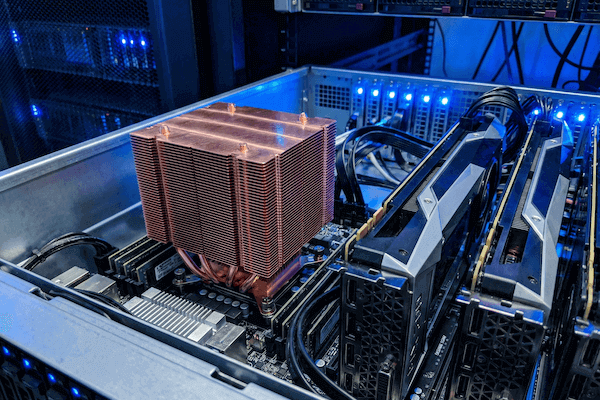

High-Performance Computing
AI processors and heavy-duty servers generate immense heat. Our precision-machined copper and aluminum heat sinks deliver aggressive cooling for CPUs and GPUs, keeping data centers running at peak efficiency.

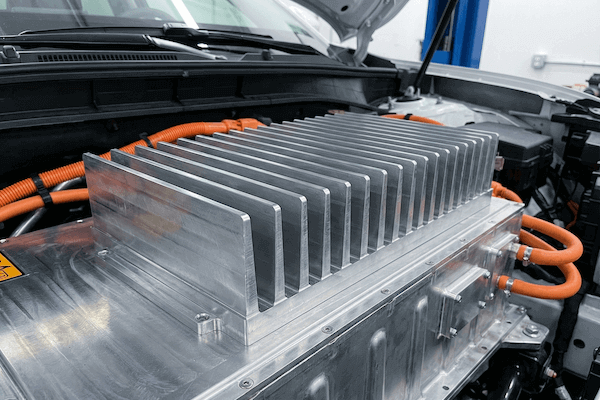

Automotive & EV
We manufacture robust thermal management components for electric vehicle battery systems (BMS), motor controllers, and high-power LED headlamps, ensuring passenger safety and extending component lifespans in harsh automotive environments.

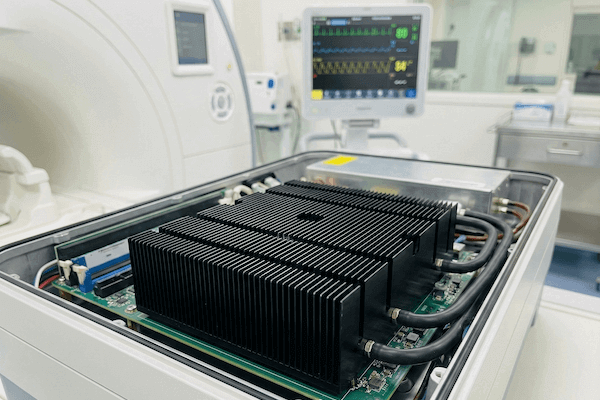

Medical & Diagnostic Equipment
Precision cooling is vital for healthcare. Our CNC machined heat sinks reliably regulate temperatures in MRI machines, CT scanners, and surgical lasers, where consistent thermal control is non-negotiable.

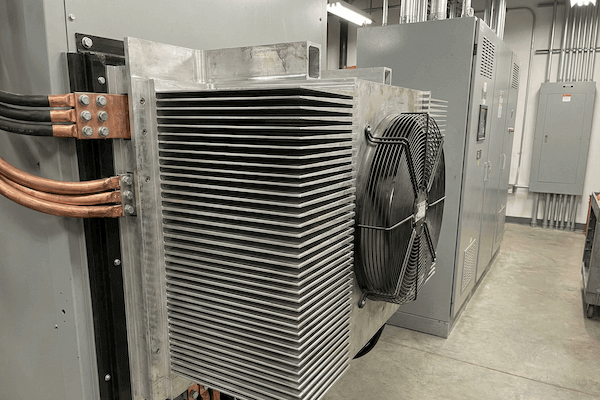

Power Electronics & Inverters
Designed for high-wattage power supplies, solar inverters, and industrial motor drives. Our custom skived and milled fins maximize heat dissipation to prevent thermal throttling in heavy-duty power conversion systems.

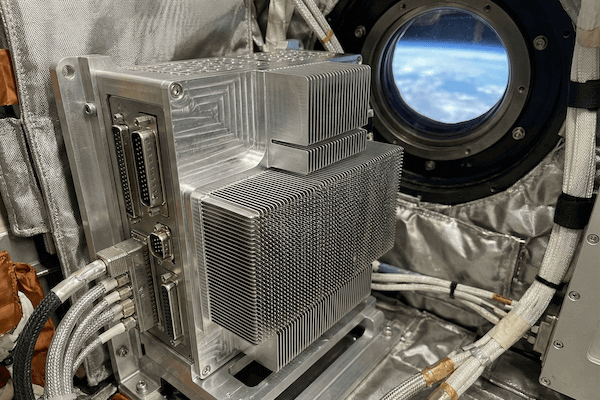

Aerospace & Defense
Lightweight aluminum heat sinks are essential for flight. We machine flight-ready thermal components for avionics, radar systems, and military communications, meeting strict weight and structural integrity requirements.
Por que escolher RALLY para CNC Machining Heat Sinks?
You have many options for machine shops, but RALLY specifically understands the geometry and precision required for thermal dynamics.
-
1. 100% Quality Guarantee: Every heat sink is CMM inspected to ensure base flatness and fin pitch match your CAD exactly. ISO 9001 certified.
-
2. Agile Manufacturing: From 1-piece functional prototypes to batches of 50,000+, our facility scales with your project timeline.
-
3. Global Logistics: We securely package delicate fins to prevent bending in transit, offering fast DDP or FOB shipping globally.
Solicite um orçamento agora!
Ready to start your custom CNC heatsink project?
Usinagem CNC personalizada | Entrega rápida | Envio global
